2.5" Mainboards
// 2.5" Industrial Mainboards
// NXP i.MX 8M Mini Quad
// SoC (System on a Chip)
// [2 GB | 4 GB]
// 1 x G-LAN
// 2 x USB (Back side)
// [16 GB | 32 GB] eMMC
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

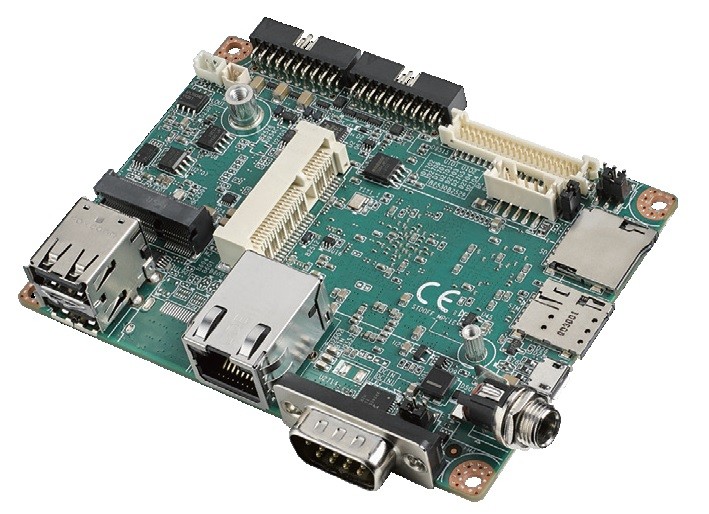

Basic Module: Advantech RSB-3730
| General information | ||||
| SKU / Item Number | RSB-3730 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Mini Quad | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,8 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| DIMM data transfer rate | DDR3-1333 MT/s | |||
| Maximum expansion | 4 GB | |||
| Internal memory | 2 GB, 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB, 32 GB | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×2, SDIO | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211FSI (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce, - | ||
| Serial | RS-232 | DB-9 | 1 Pce, 2 Pce | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Internal I/O | ||||
| Display | LVDS connectors | 1 Pce, - | ||
| Image Capture Interfaces | Camera Input 1 | Quantity | 1 Pce, - | |
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Maximum power consumption | 9,96 W | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 3.0 | ||
| Supported OS | Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 2.5" | ||
| Width | 100 mm | |||
| Deep | 72 mm | |||
| Height | 19 mm | |||
| Weight | 340 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
