2.5" Mainboards
// 2.5" Industrial Mainboards
// [NXP i.MX 8M Dual | NXP i.MX 8M Dual-I | NXP i.MX 8M Quad Plus | NXP i.MX 8M Quad-I]
// SoC (System on a Chip)
// [4 GB | 6 GB]
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// 1 x Seriell I/O
// 16 GB eMMC
// Digital I/O (10-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

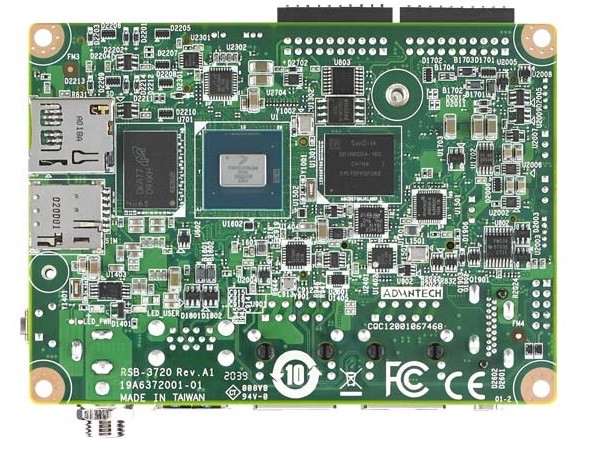

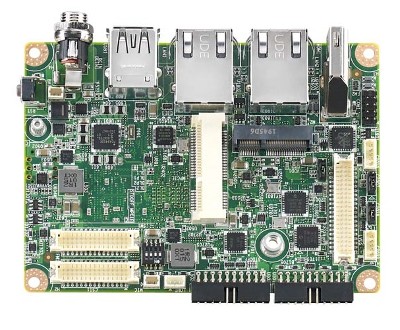

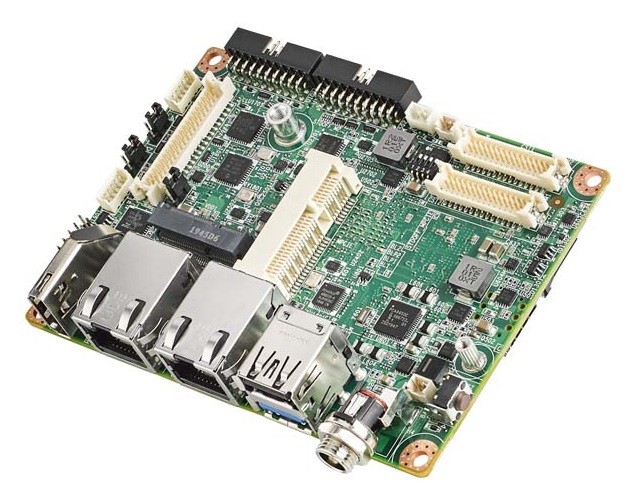

Basic Module: Advantech RSB-3720
| General information | ||||
| SKU / Item Number | RSB-3720 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Dual, NXP i.MX 8M Dual-I, NXP i.MX 8M Quad Plus, NXP i.MX 8M Quad-I | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Max Turbo Frequency | 1,6 GHz, 1,8 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| DIMM data transfer rate | 4000 MT/s | |||
| Internal memory | 4 GB, 6 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| Graphics | ||||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| Version | 2.0a | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | Audio, PCIe ×1 (Gen. 2), SDIO, UART, USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211FSI (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

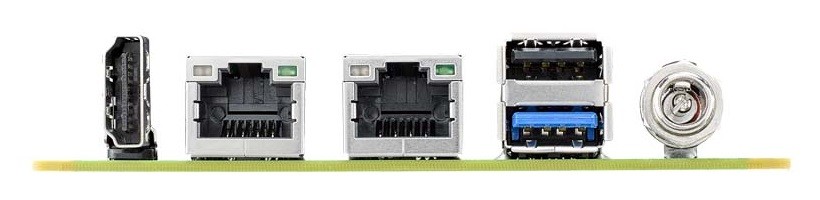

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.0 | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 3 Pce | |
| USB 3.2 | Generation | Gen. 1 | ||
| Interface | 1 Pce | |||
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 10-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 2 Pce | ||
| Image Capture Interfaces | Camera Input 1 | Quantity | 2 Pce | |
| Lanes | 4 Pce | |||
| Standard | MIPI CSI-2 | |||
| MIPI-DSI (Display Serial Interface) | 1 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 2 Pce | ||
| Protocol | CAN 2.0A, CAN 2.0B, CAN-FD | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Typical power consumption | 7,13 W | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 3.0 | ||
| Android | Release | 12 | ||
| Supported OS | Android, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 2.5" | ||
| Width | 100 mm | |||
| Deep | 72 mm | |||
| Height | 19 mm | |||
| Weight | 50 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
