1.8" Mainboards
// 1.8" Industrial Mainboards
// [Intel Atom X7211RE | Intel Atom X7433RE | Intel Atom x7835RE | Intel Core i3-N355 | Intel N150]
// SoC (System on a Chip)
// 4 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 128 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

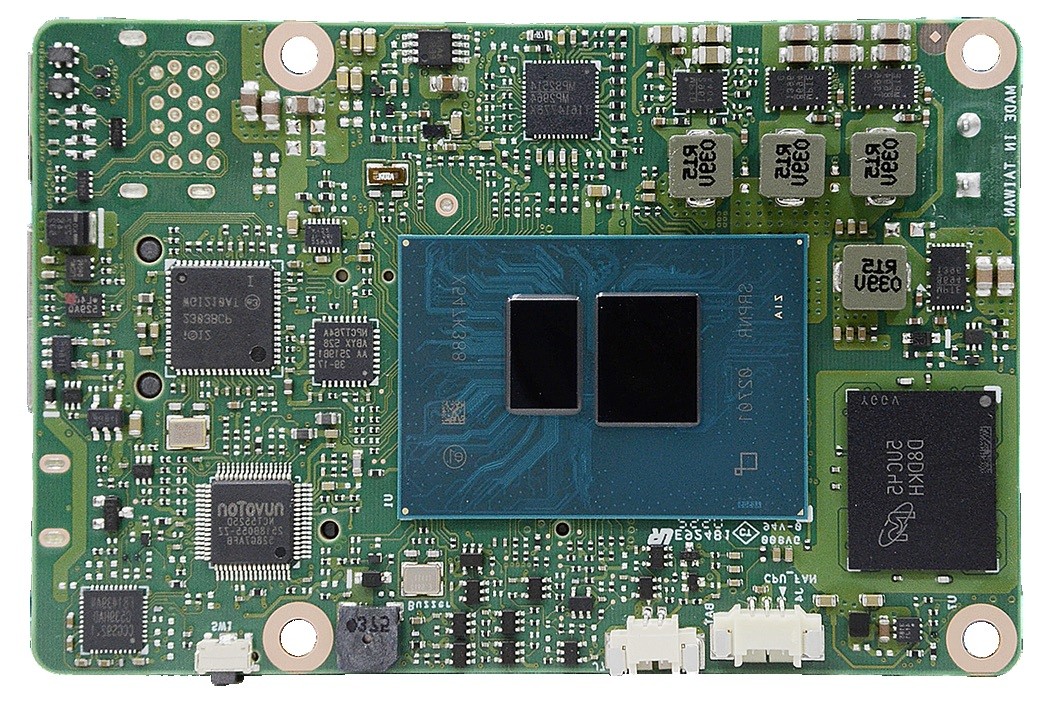

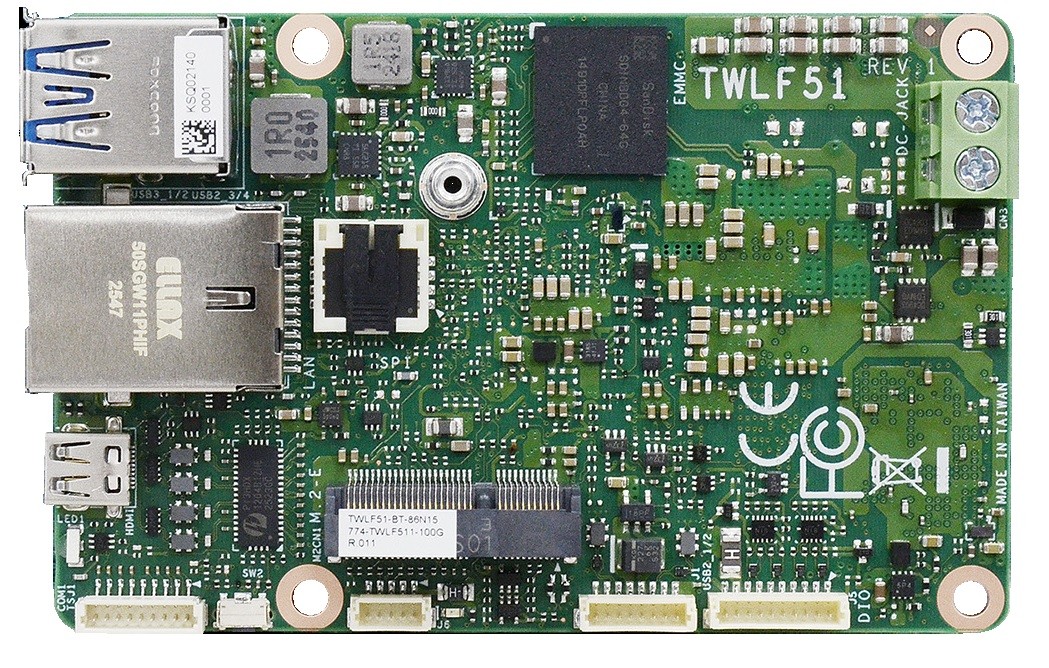

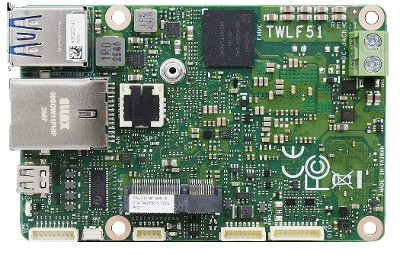

Basic Module: DFI TWLF51
| General information | ||||
| SKU / Item Number | TWLF51 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Amston Lake, Intel Twin Lake | ||
| Number | Intel Atom X7211RE, Intel Atom X7433RE, Intel Atom x7835RE, Intel Core i3-N355, Intel N150 | |||
| CPU cores | 2 Pce, 4 Pce, 8 Pce | |||
| Threads | 4 Pce, 8 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,2 GHz, 3,4 GHz, 3,6 GHz, 3,9 GHz | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 12 W, 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| DIMM data transfer rate | 4800 MT/s | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 128 GB | ||
| eMMC version | 5.1 | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT5525D | |
| Power supply - Input | Embedded MultiMedia Card (eMMC) 128 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

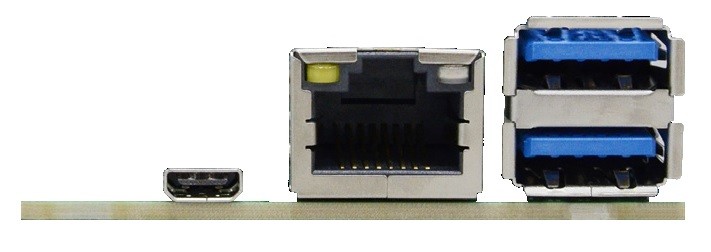

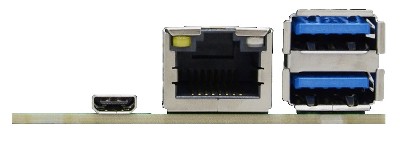

| Externe I/O (Rear Panel) | ||||
| Display | Micro HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| Internal I/O | ||||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 65°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 1.8" | ||
| Width | 84 mm | |||
| Deep | 55 mm | |||
| Height | 21,95 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
