1.8" Mainboards
// 1.8" Industrial Mainboards
// [AMD Ryzen R1102G | AMD Ryzen R1305G | AMD Ryzen R1505G | AMD Ryzen R1606G]
// [4 GB | 8 GB]
// 1 x G-LAN
// 1 x USB
// 64 GB eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

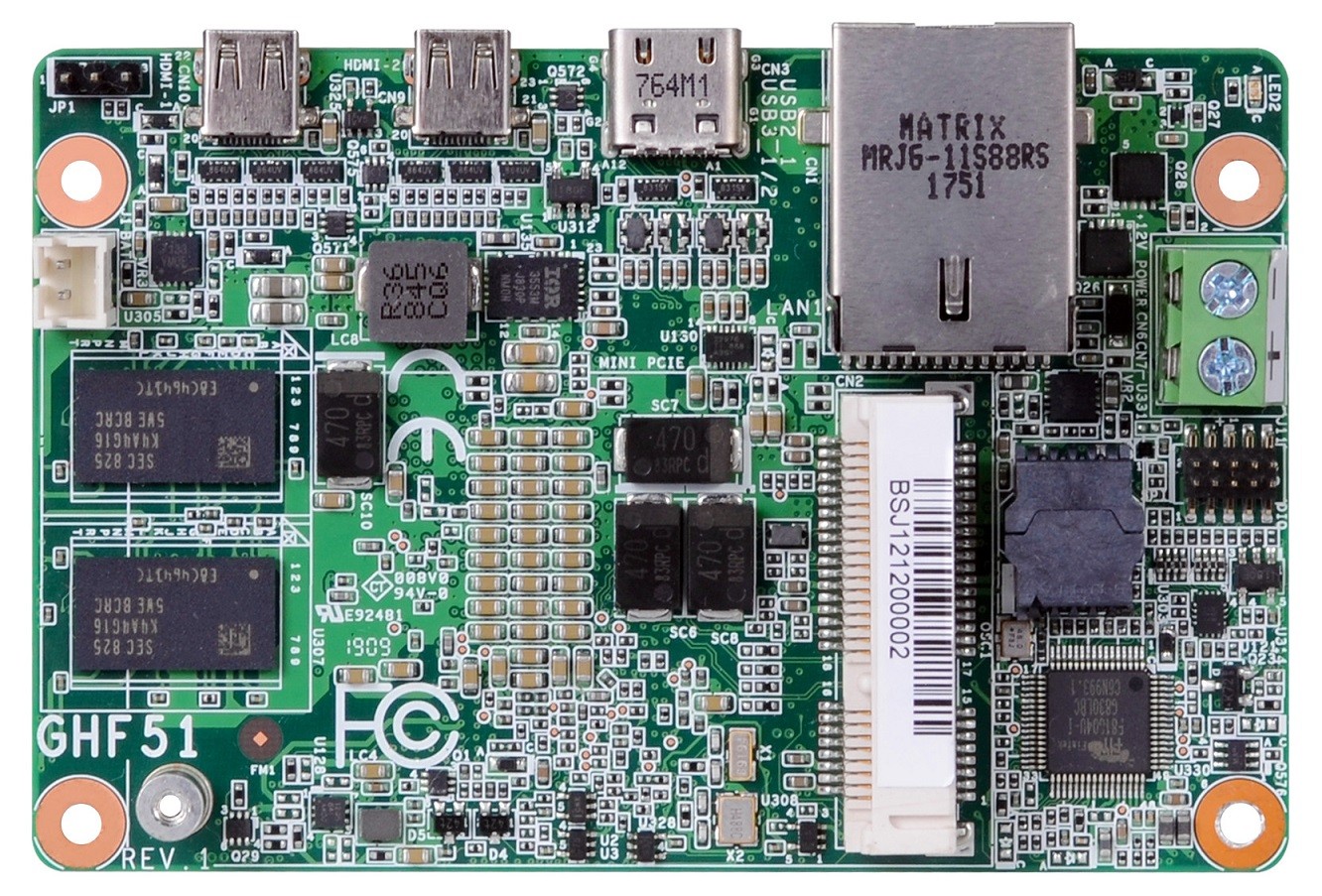

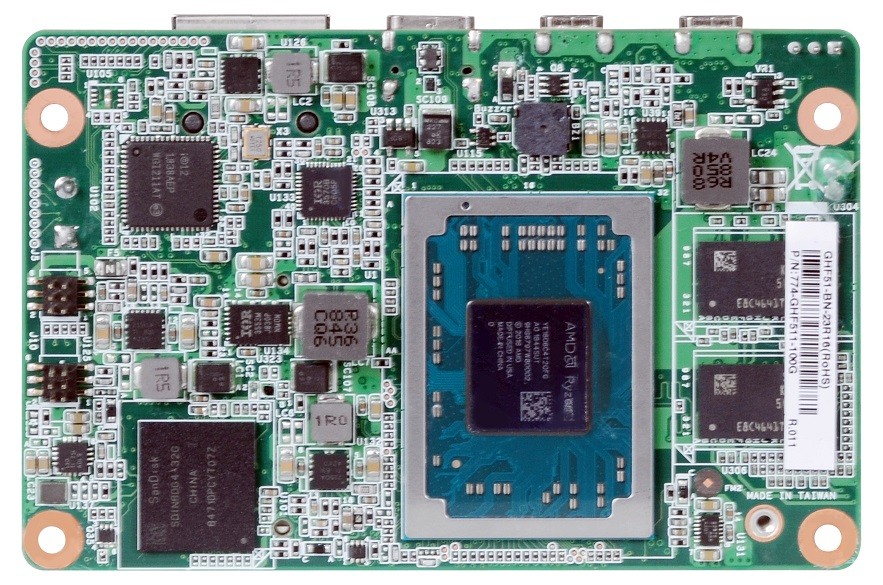

Basic Module: DFI GHF51
| General information | ||||
| SKU / Item Number | GHF51 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-GHF512-000G, 770-GHF512-100G, 770-GHF512-300G, 770-GHF512-400G, 770-GHF512-500G, 770-GHF512-600G, 770-GHF512-700G | |||
| System | ||||
| Processor | Series | AMD Great Horned Owl | ||
| Number | AMD Ryzen R1102G, AMD Ryzen R1305G, AMD Ryzen R1505G, AMD Ryzen R1606G | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1140 (FP5) | |||
| Base frequency | 1,2 GHz, 1,5 GHz, 2,4 GHz, 2,6 GHz | |||
| Max Turbo Frequency | 2,6 GHz, 2,8 GHz, 3,3 GHz, 3,5 GHz | |||
| Cache | 1 MB | |||
| Thermal Design Power (TDP) | 6 W, 10 W, 12 W | |||
| Memory | Memory Type | DDR4 | ||
| Frequency | 2133 / 2400 MHz | |||
| Internal memory | 4 GB, 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| BIOS | AMI SPI 64 Mbit | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | AMD Radeon Vega 3 | |||
| Performance feature | Hardware decoding | HEVC / H.265, VP 9 | ||
| HW encoding | HEVC / H.265 | |||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 24 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

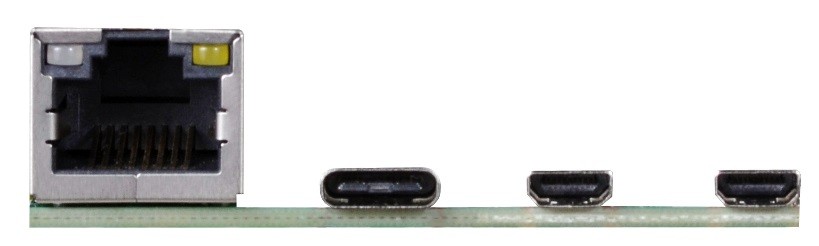

| External I/O | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.1 (Gen 2, Type-C) | 1 Pce | ||
| Display | Micro HDMI | 2 Pce | ||
| Internal I/O | ||||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Supported OS | Windows Embedded | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° down to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 1.8" | ||
| Width | 55 mm | |||
| Deep | 84 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q4/2020 | |||
| Guaranteed until | Q2/2029 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 3 years | |||
