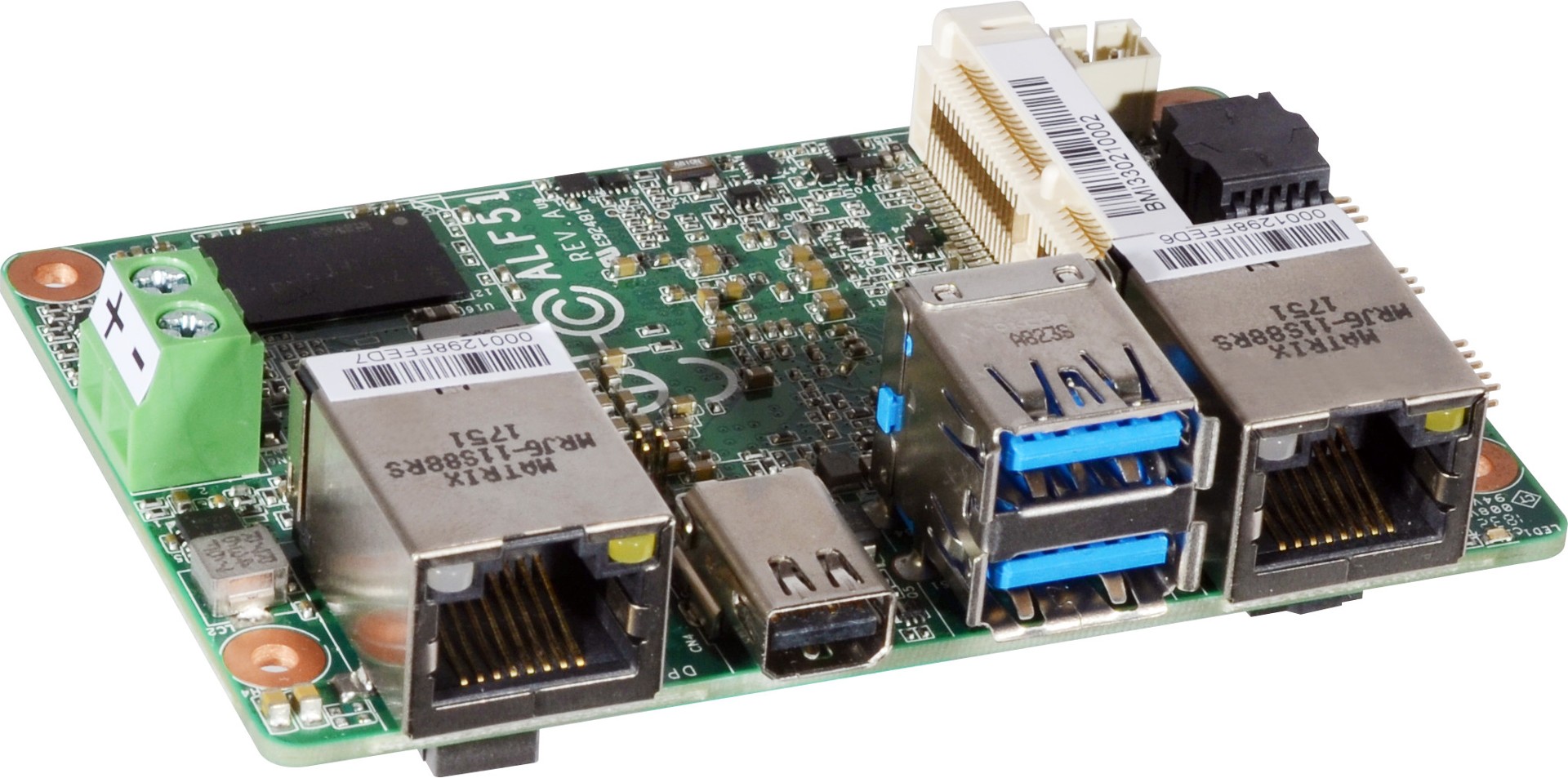

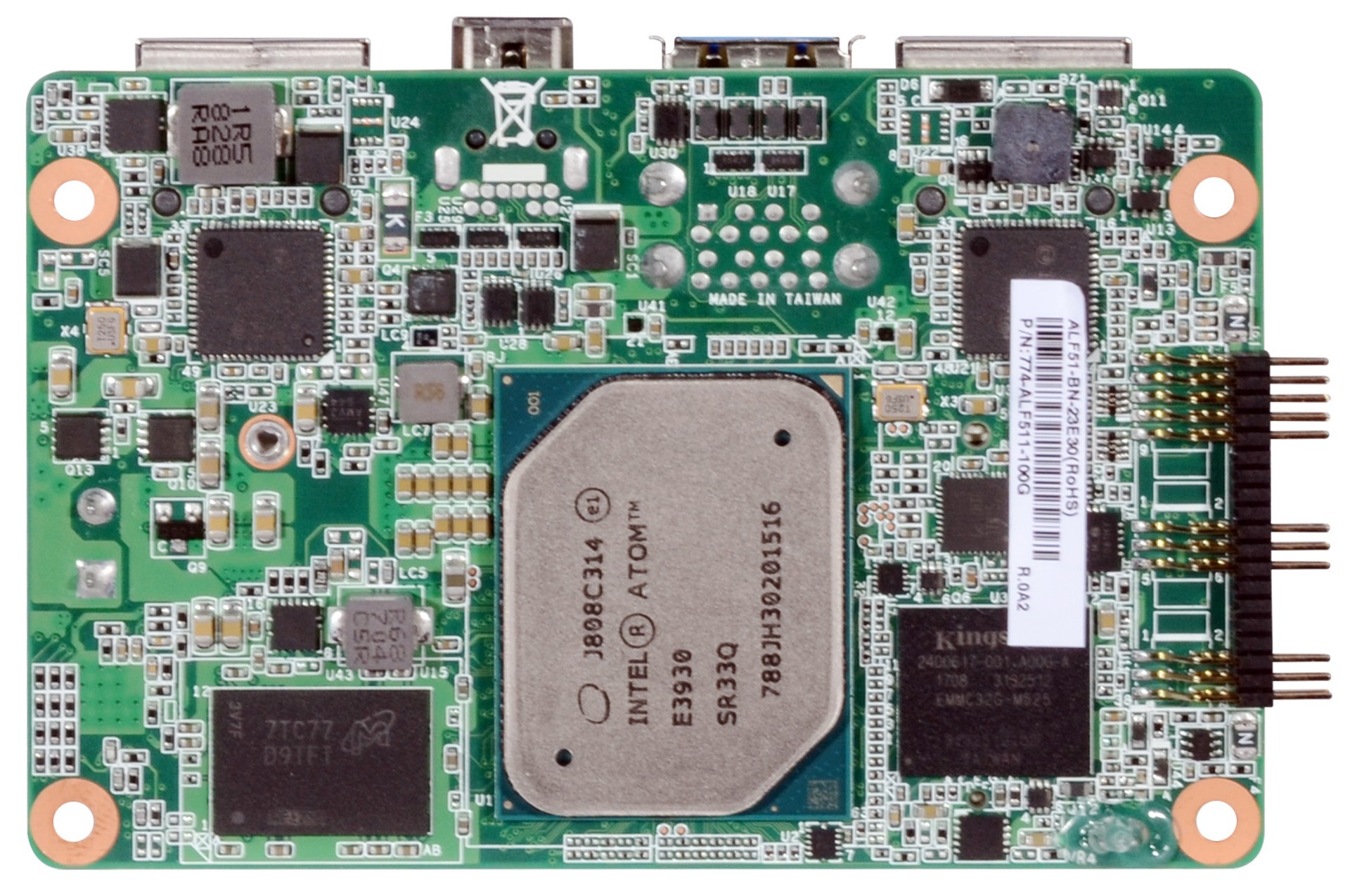

1.8" Mainboards
// 1.8" Industrial Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Celeron N3350]
// SoC (System on a Chip)
// [2 GB | 4 GB | 8 GB]
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 1 x USB (internal)
// 64 GB eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI ALF51
| General information | ||||
| SKU / Item Number | ALF51 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-ALF511-000G, 770-ALF511-100G, 770-ALF511-200G, 770-ALF511-300G, 770-ALF511-400G, 770-ALF511-500G, 770-ALF511-600G, 770-ALF511-700G, 770-ALF511-800G, 770-ALF511-900G, 770-ALF511-A00G | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Apollo Lake | |||
| Number | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Celeron N3350 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
| Max Turbo Frequency | 1,8 GHz, 2,4 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W | |||
| Lithography | 14 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Frequency | 2400 MHz | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 2 GB, 4 GB, 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| BIOS | Insyde SPI 128 Mbit | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Performance feature | Support | DirectX 11.1, OpenCL 1.2, OpenGL 4.2, OpenGL ES 3.0 | ||
| Hardware decoding | AVC / H.264, HEVC / H.265, MPEG2, MPEG4, VC1 / WMV9, VP 8 | |||
| HW encoding | AVC / H.264, MPEG2, MPEG4 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

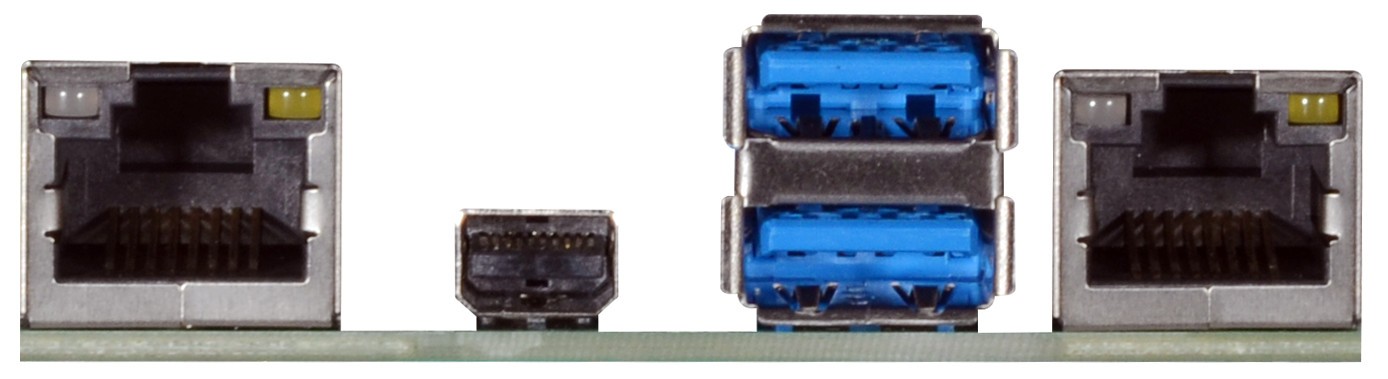

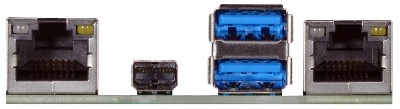

| Externe I/O (Rear Panel) | ||||
| Display | Mini DisplayPort++ | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.1 Gen 1 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (1.27 mm Pitch) | 1 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | is supported | ||
| Windows 10 Enterprise IoT LTSC (2019) | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° down to 70°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 1.8" | ||
| Width | 84 mm | |||
| Deep | 55 mm | |||
| Height | 16,34 mm | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 868.962 h | ||
| MTBF at 45°C | 638.889 h | |||
| MTBF at 60°C | 465.382 h | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q1/2019 | |||
| Expected until | Q4/2031 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 3 years | |||
