1.8" Mainboards
// Pico-ITX Industrial Mainboards
// Qualcomm QCS8550
// 8 GB
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

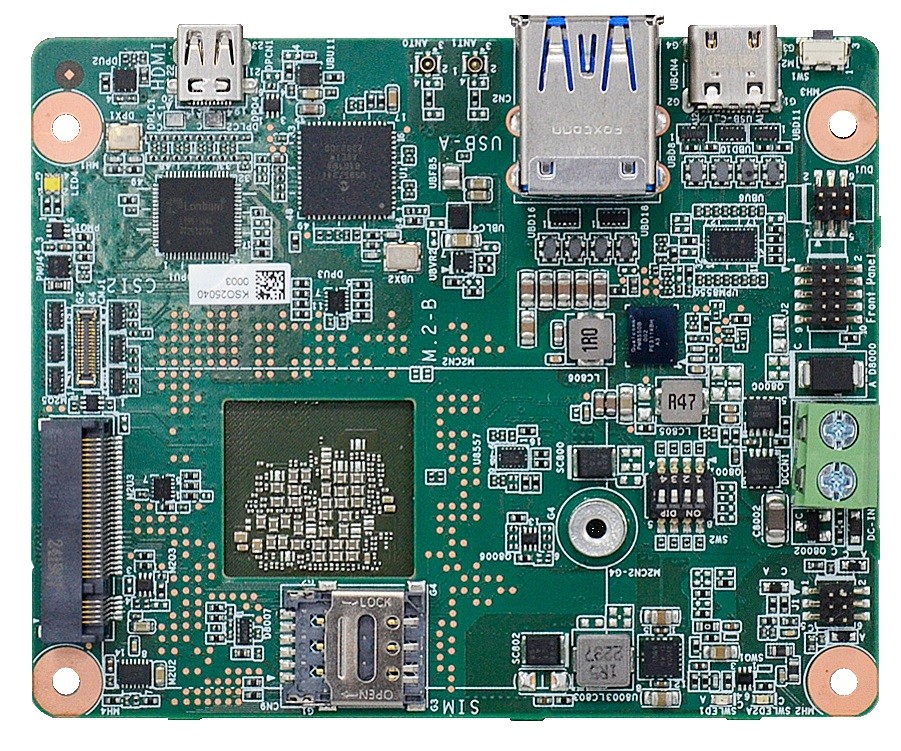

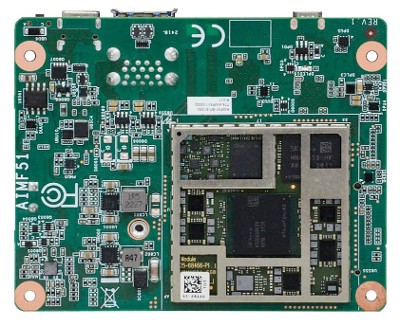

Basic Module: DFI AIMF51
| General information | ||||
| SKU / Item Number | AIMF51 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Qualcomm Snapdragon | ||
| Number | Qualcomm QCS8550 | |||
| CPU cores | 8 Pce | |||
| Max Turbo Frequency | 3,2 GHz | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 8 GB | |||
| Storage | Universal Flash Storage (UFS) | Memory | 128 GB GB | |
| Version | 3.1 | |||
| AI / AI | ||||
| Performance | TFLOPS (FP16) | 12 | ||
| TOPS (INT8) | 48 | |||
| Graphics | ||||
| Processor | Qualcomm Adreno 740 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, PCIe ×1 (Gen 3), USB 3.1 Gen 1 | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD (external) | |||
| Audio | ||||
| Chipset | Qualcomm WCD9385 | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac/ax | |
| Network | Wi-Fi | |||

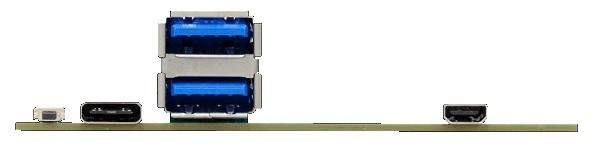

| Externe I/O (Rear Panel) | ||||
| Display | Micro HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.1 Gen 1 | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| Image Capture Interfaces | Camera Input 1 | Quantity | 1 Pce | |
| Lanes | 4 Pce | |||
| Standard | MIPI CSI-2 | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Linux | Distribution | Linux | ||
| Kernel | 5.x | |||
| Android | Release | 13 | ||
| Supported OS | Linux, Android | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 65°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | Pico-ITX | ||
| Width | 84 mm | |||
| Deep | 68 mm | |||
| Height | 19,4 mm | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
