1.8" Mainboards
// 1.8" Industrial Mainboards
// [Intel Atom x6211E | Intel Atom x6212RE | Intel Atom x6413E | Intel Celeron J6412 | Intel Celeron J6413]
// SoC (System on a Chip)
// 4 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// 1 x Seriell I/O
// 64 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

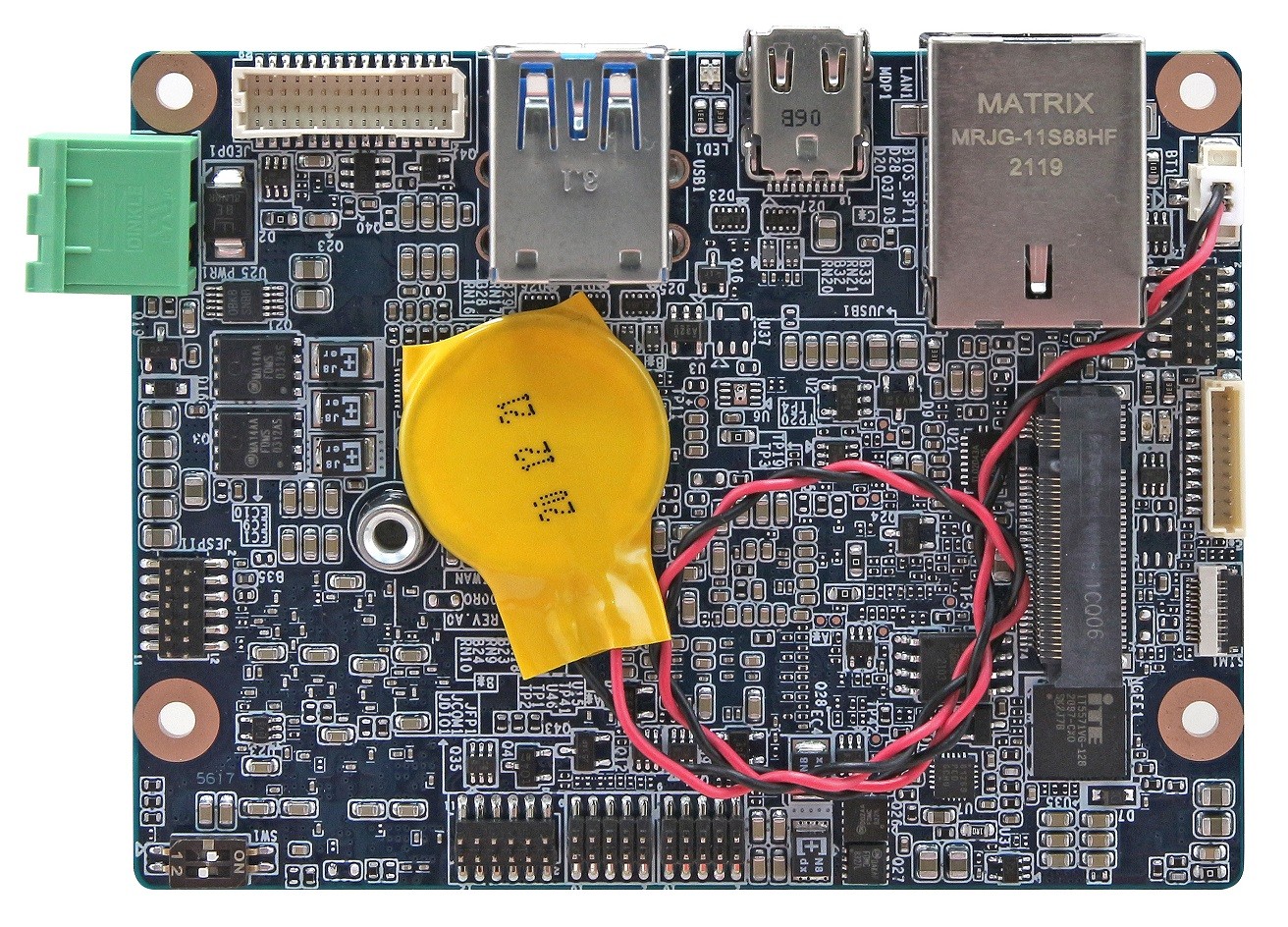

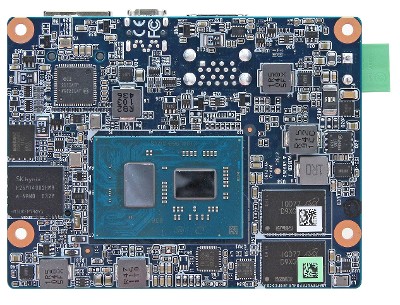

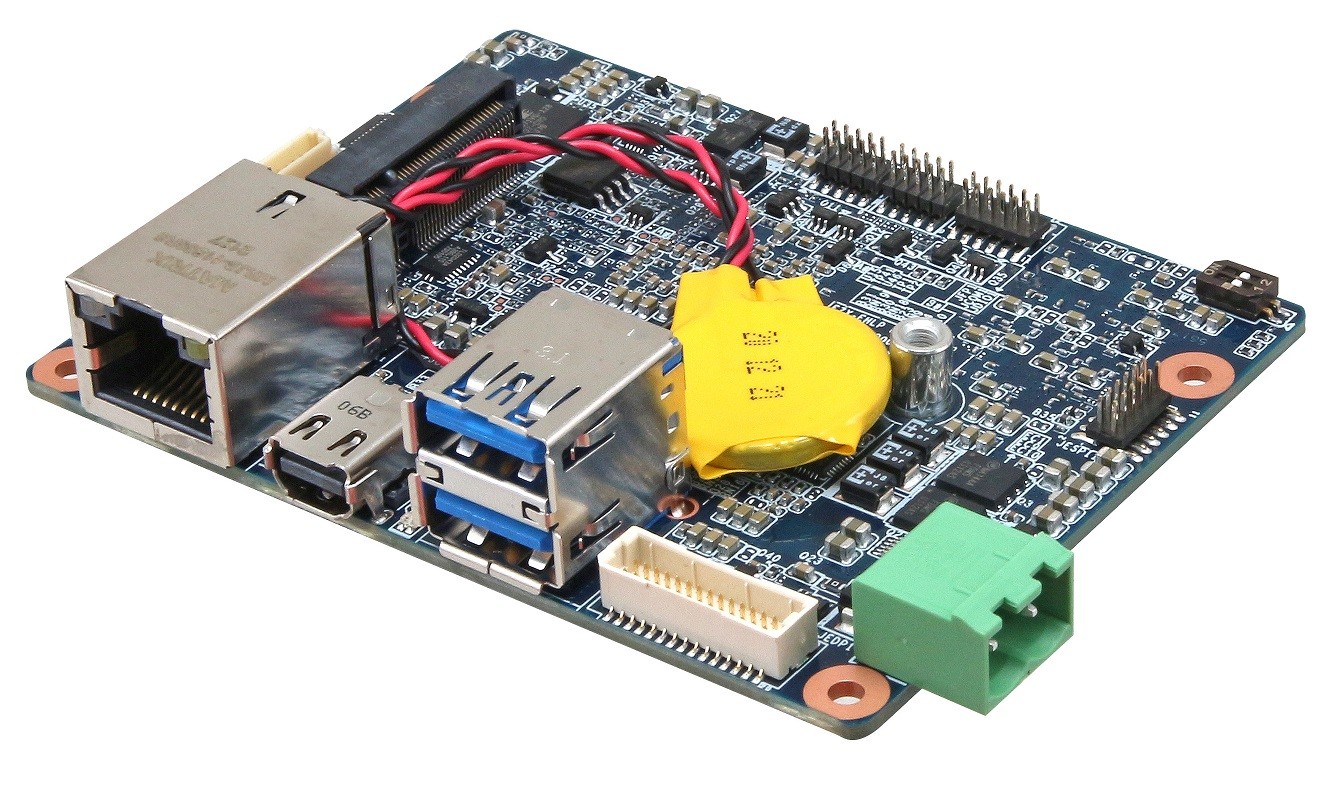

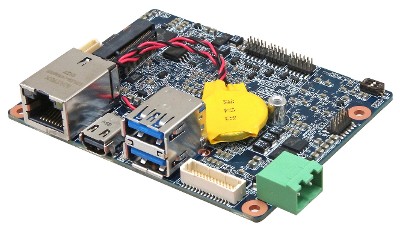

Basic Module: Avalue EZX-EHLP
| General information | ||||
| SKU / Item Number | EZX-EHLP | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Elkhart Lake | |||
| Number | Intel Atom x6211E, Intel Atom x6212RE, Intel Atom x6413E, Intel Celeron J6412, Intel Celeron J6413 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1493 | |||
| Base frequency | 1,2 GHz, 1,3 GHz, 1,5 GHz, 1,8 GHz, 2 GHz | |||
| Max Turbo Frequency | 2,6 GHz, 3 GHz, - | |||
| Cache | 1,5 MB | |||
| Thermal Design Power (TDP) | 6 W, 9 W, 10 W | |||
| Lithography | 10 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Slots | 0 Pce | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| eMMC version | 5.1 | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT5571 | |
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, NVMe, PCIe ×1 (Gen 3), SATA III, USB 2.0, USB 3.0 | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| M.2 Key IDs | B | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

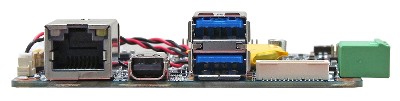

| Externe I/O (Rear Panel) | ||||
| Display | Mini DisplayPort | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.1 Gen 2 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° to 60°C | ||
| Storage | -40°C to 75°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 1.8" | ||
| Width | 84 mm | |||
| Deep | 65 mm | |||
| Weight | 300 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
