Pico-ITX Mainboards
// Pico-ITX Industrial Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron J3455 | Intel Celeron N3350 | Intel Pentium N4200]
// [2 GB | 8 GB | 16 GB]
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

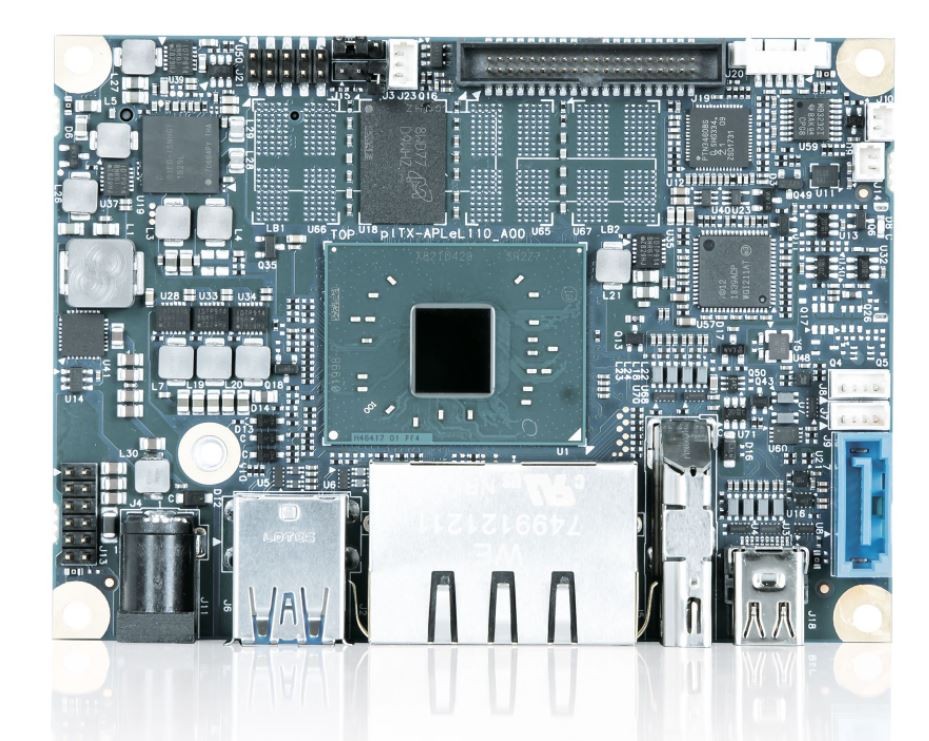

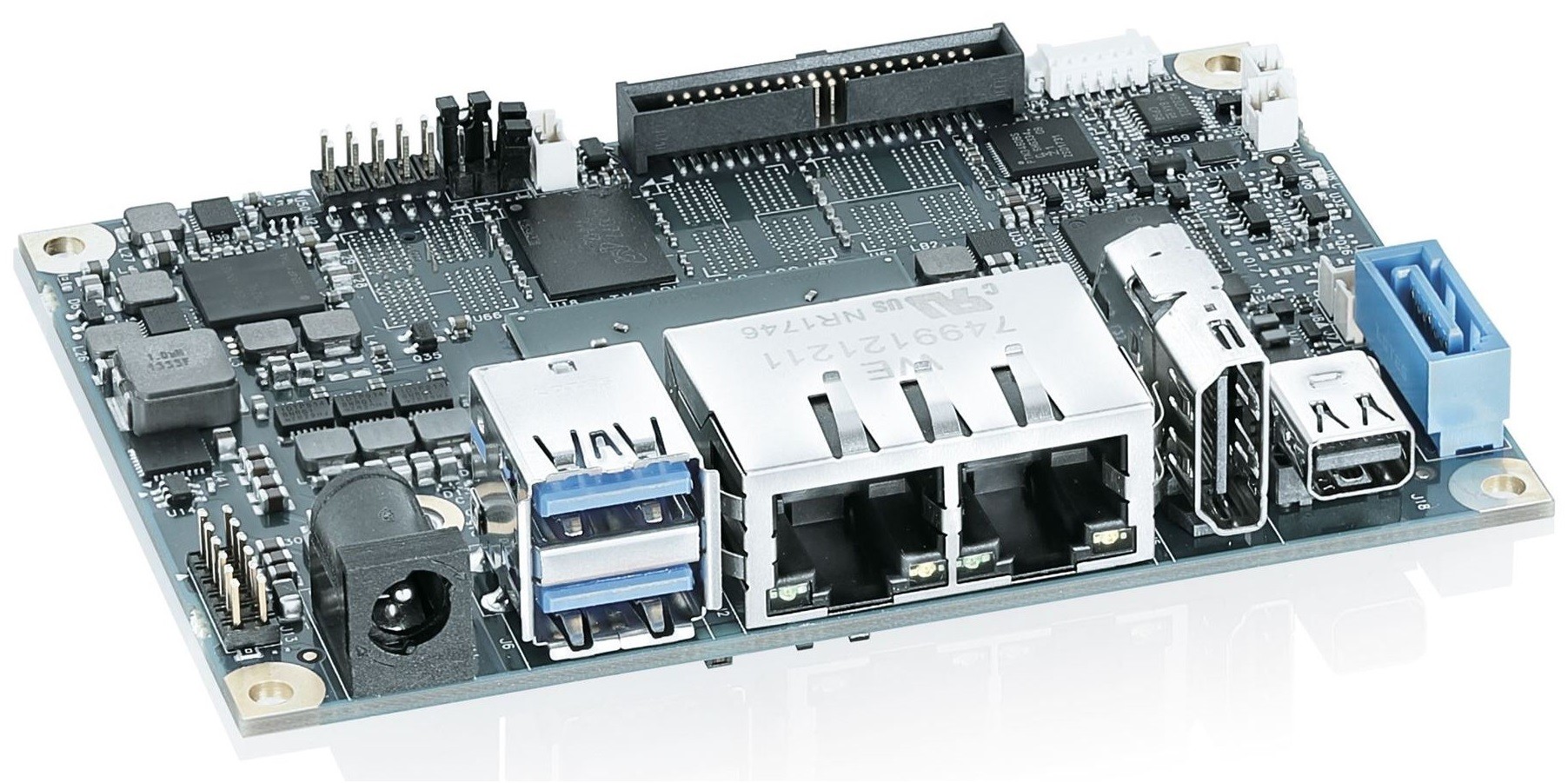

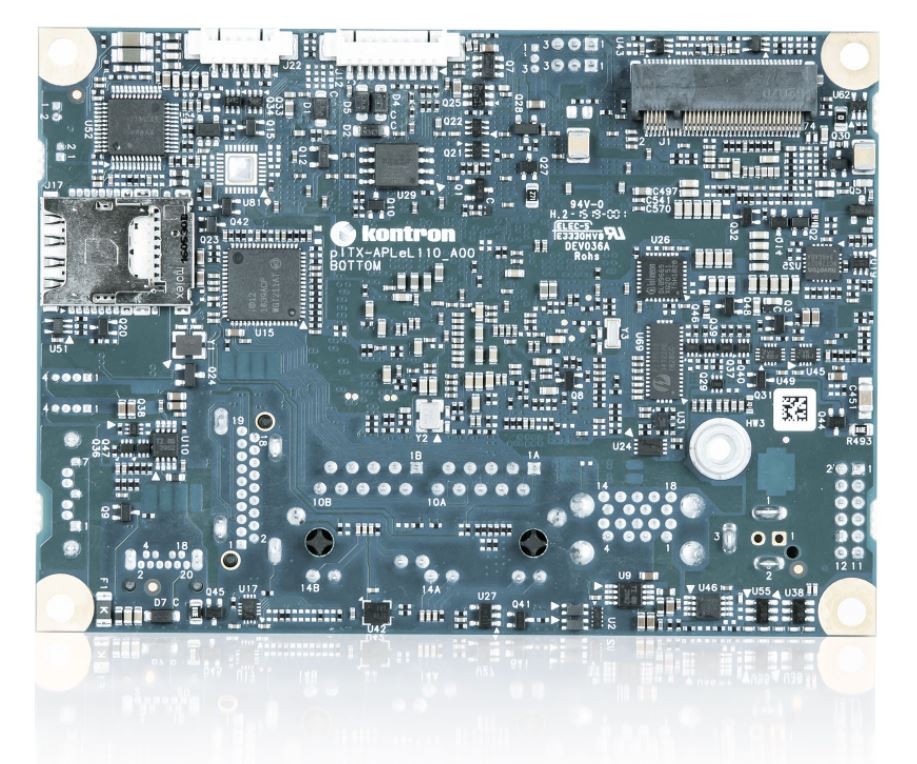

Basic Module: Kontron pITX-APL V2.0
| General information | ||||
| SKU / Item Number | pITX-APL V2.0 | |||
| Product Basic Data | ||||
| Manufacturer | Kontron | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Apollo Lake | |||
| Number | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron J3455, Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz, 1,3 GHz, 1,5 GHz, 1,6 GHz | |||
| Max Turbo Frequency | 1,8 GHz, 2 GHz, 2,3 GHz, 2,4 GHz, 2,5 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 10 W, 12 W | |||
| Lithography | 14 nm | |||
| Memory | Memory Type | DDR4 | ||
| Frequency | 3200 MHz | |||
| Internal memory | 2 GB, 8 GB, 16 GB | |||
| BIOS | AMI UEFI Aptio 5.x | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Version | 2.0a | ||
| DisplayPort | Version | 1.2 | ||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen 3) | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | B | |||
| SIM | Form Factor (Slot) | Micro SIM | ||
| Storage | Micro SD | |||
| Audio | ||||
| Chipset | Intel integrated audio | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

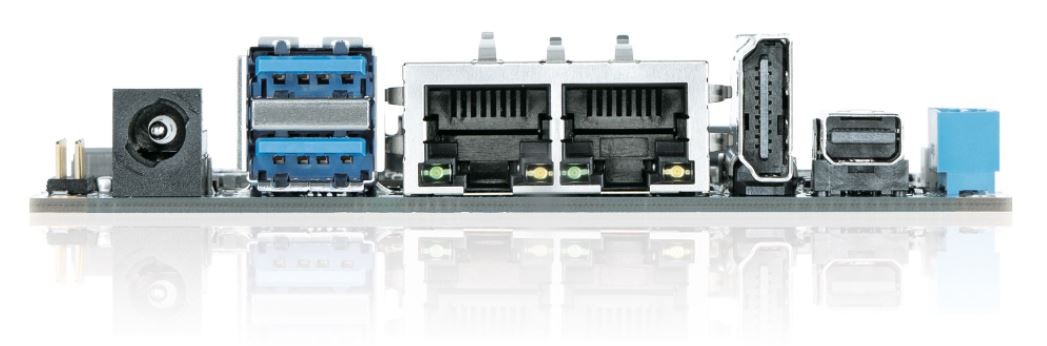

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Mini DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| S/PDIF | available | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9665 XQ 2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | Lithium 3V (210 mAh) | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | -, is supported | ||
| Windows 10 Enterprise IoT LTSC (2019) | -, is supported | |||
| Windows 10 IoT Core | -, is supported | |||
| Linux | Distribution | Ubuntu 19.04 (64-bit), Yocto 3.0 | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -25°C to 75°C | ||
| Storage | -40°C to 85°C | |||
| Dimensions | Form factor | Pico-ITX | ||
| Width | 100 mm | |||
| Deep | 72 mm | |||
| Height | 41 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | REACH | |||
| RoHS compliant | Yes | |||
