Micro-ATX Mainboards
// Micro-ATX Industrial Mainboards
// LGA 1200 (H5)
// Intel W480E
// 288-pin DDR4 DIMM
// 1 x VGA
// 1 x HDMI
// 2 x Displayport
// 2 x G-LAN
// 6 x USB
// 3 x USB (internal)
// 2 x Seriell I/O
// 2 x PCIe x1
// 2 x PCIe x16
// Power Supply ATX
Sales only to business customers.
Delivery time: upon request

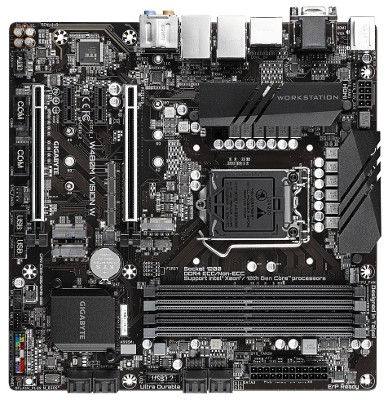

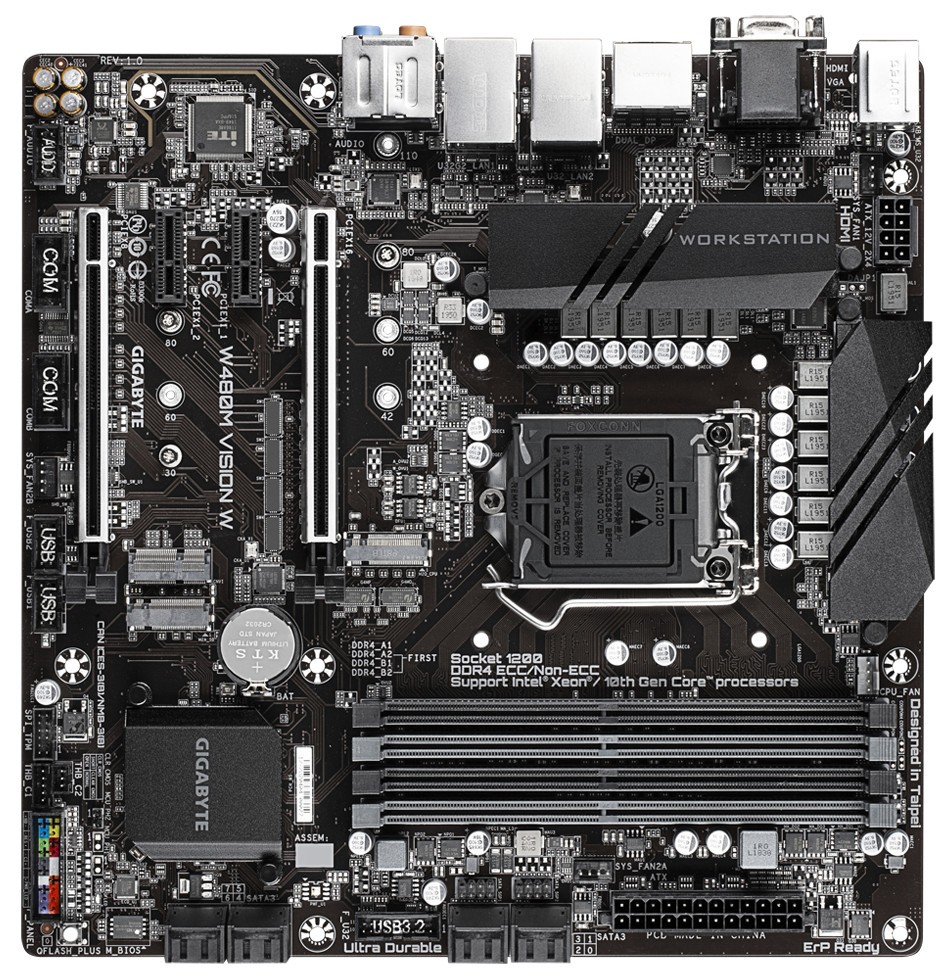

Basic Module: GIGAIPC W480M Vision W
| General information | ||||
| SKU / Item Number | W480M Vision W | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| System | ||||
| Processor | Socket | LGA 1200 (H5) | ||
| Chipset | Intel W480E | |||
| Memory | Structure | 288-pin DDR4 DIMM | ||
| Memory Type | DDR4 | |||
| Slots | 4 Pce | |||
| Maximum expansion | 128 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| PCIe x1 | x1 Signal | 2 Pce | ||
| PCIe x16 | x8 signal | Quantity | 1 Pce | |
| x16 signal | Quantity | 1 Pce | ||
| PCIe Interfaces | 2x PCIe x1, 2x PCIe x16 slots | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 | |||
| Supported dimensions | 2242, 2260, 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 | |||
| Supported dimensions | 2260, 2280 | |||
| M.2 Key IDs | M | |||
| Audio | ||||
| Chipset | Realtek ALC1200 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

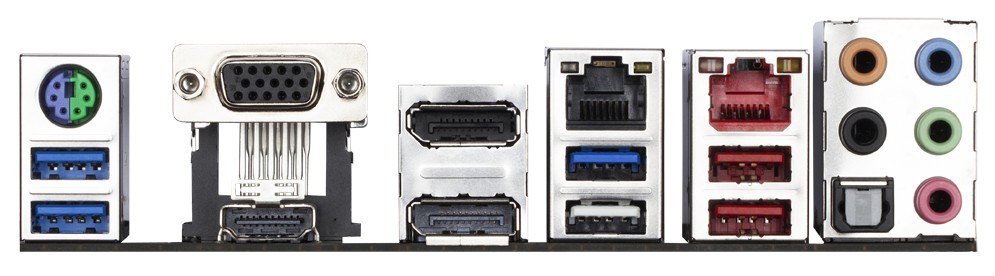

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| USB 3.2 (Gen 2, Type A) | 2 Pce | |||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DisplayPort | 2 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Speaker Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| S/PDIF | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| USB 3.0 | Ports (2.54 mm pitch) | 1 Pce | ||
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 2 Pce | ||
| SATA R3.0 (6 Gbit/s, 600 MB/s) | 8 Pce | |||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 8-pin ATX (12V DC), 24-pin ATX | |
| Power supply - Input | ATX: 8-pin ATX (12V DC), 24-pin ATX | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Dimensions | Form factor | Micro-ATX | ||
| Width | 244 mm | |||
| Deep | 244 mm | |||
