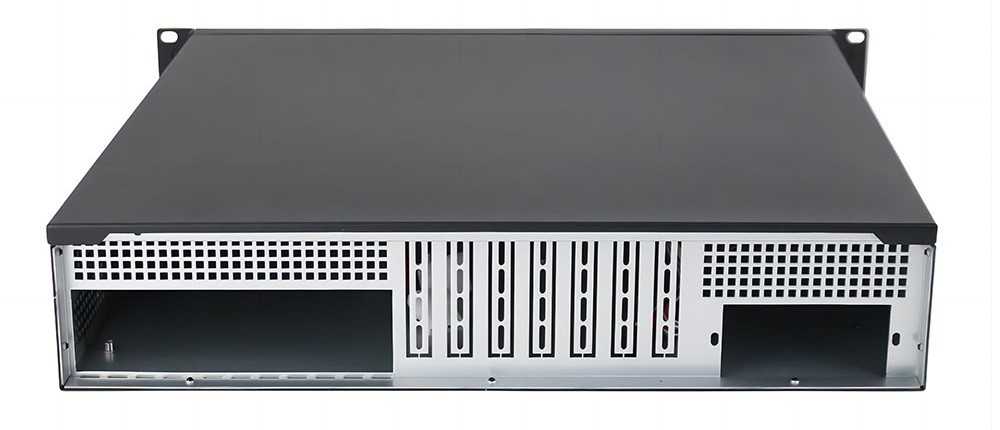

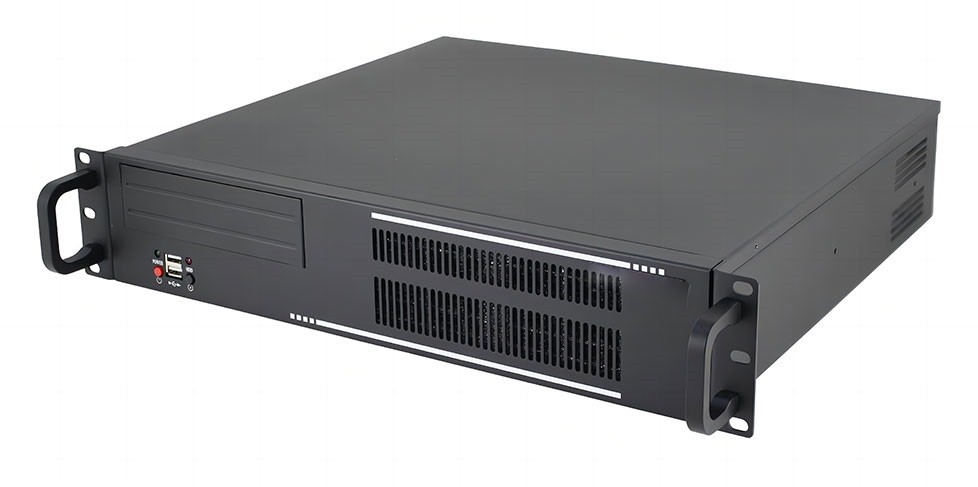

2U 19-Inch Rack Enclosure
// Darveen
// DIC-217 ohne Netzteil
// -
Sales only to business customers.
Delivery time: upon request
Basic Module: Darveen DIC-217 ohne Netzteil
| General information | ||||
| SKU / Item Number | DIC-217 ohne Netzteil | |||
| Product Basic Data | ||||
| Manufacturer | Darveen | |||
| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||
| Inserts | ||||
| Internal | 2.5" installation slot | 2 Pce | ||
| 3.5" Drive Bay | 4 Pce | |||
| external | 5.25" Drive Bay | 1 Pce | ||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 2 Pce | |
| Diameter | 80 mm | |||
| height | 25 mm | |||
| filter mat | filter mat | Yes | ||
| Motherboards | ||||
| Supported motherboards | ATX | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 60°C | |||
| Relative humidity | Operation | 10 to 85%, non-condensing | ||
| Dimensions | Form factor | 19-inch | ||
| Width | 428 mm | |||
| Deep | 400 mm | |||
| Height | 88,5 mm | |||
| Height units | 2 HE | |||
| Weight | 5000 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 7 Pce | ||
| Color | Black | |||
| Mounting option | Rackmount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
