Embedded System
// 19-inch
// [Intel Core i5-1145G7 | Intel Core i5-1235U | Intel Core i7-1165G7 | Intel Core i7-1265U]
// [2,6 | 2,8 | 3,3 | 3,6] GHz
// Passive cooled
// 2 x Display
// 4 x Serial
// 4 x USB (Front page)
// 2 x USB (Back side)
// 2 x G-LAN (Back side)
// 1 x M.2 Slot
// 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Rosch Computer 1U Fanless Rack-PC ROSCH2
| General information | ||||
| SKU / Item Number | 1U Fanless Rack-PC ROSCH2 | |||
| Product Basic Data | ||||
| Manufacturer | Rosch Computer | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Alder Lake, Intel Tiger Lake | |||
| Number | Intel Core i5-1145G7, Intel Core i5-1235U, Intel Core i7-1165G7, Intel Core i7-1265U | |||
| CPU cores | 4 Pce, 10 Pce | |||
| Threads | 8 Pce, 12 Pce | |||
| Socket | BGA 1744 | |||
| Base frequency | 2,6 GHz, 2,8 GHz, 3,3 GHz, 3,6 GHz | |||
| Max Turbo Frequency | 4,4 GHz, 4,7 GHz, 4,8 GHz | |||
| Cache | 8 MB, 12 MB | |||
| Thermal Design Power (TDP) | 15 W, 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111E (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Quantity | 1 Pce | ||
| Controller | Chipset | Intel I219 PCIe (10/100/1000 Mbps) | ||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||

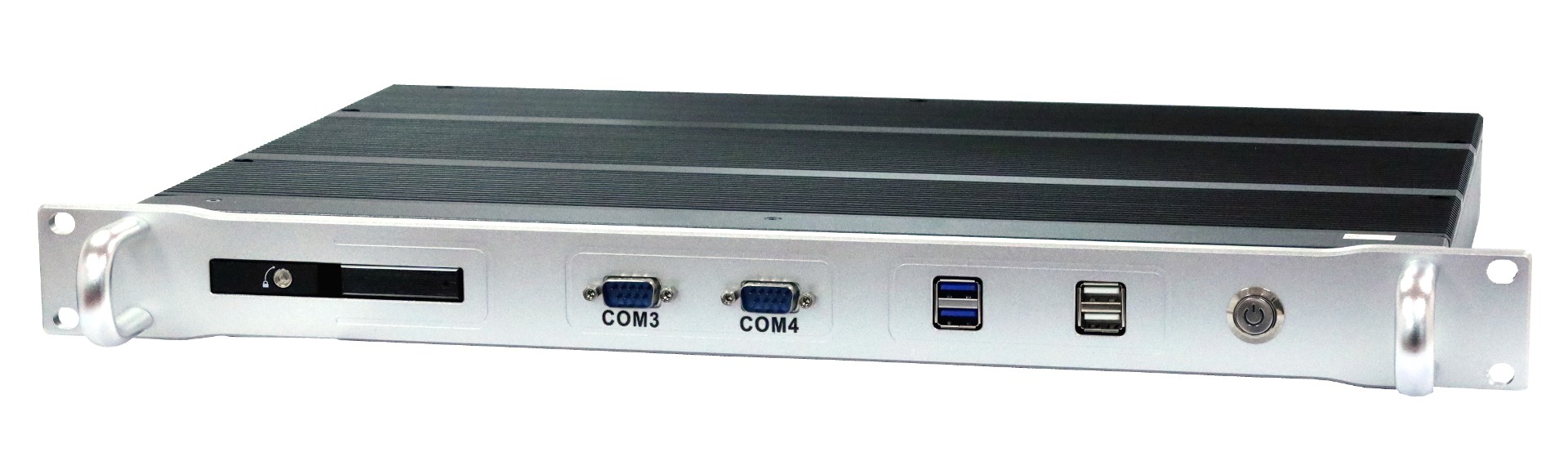

| Externe I/O (Front Panel) | ||||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||

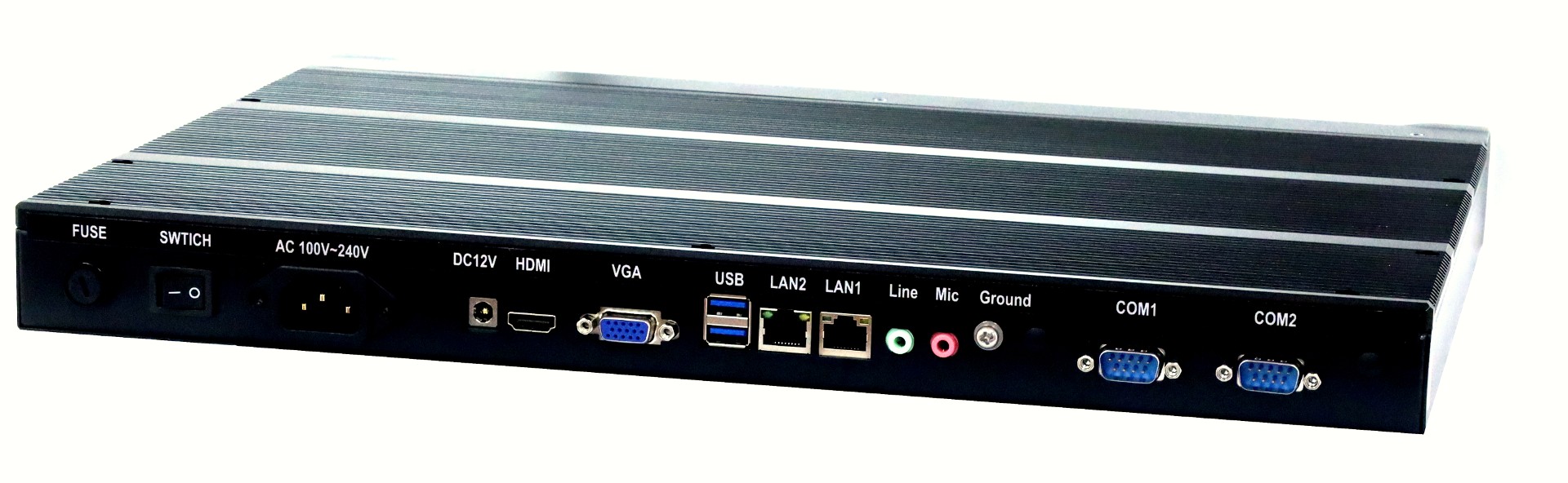

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | AC | Range | 110~240V | |
| Input frequency | 50-60 Hz | |||
| DC | Wide Range | No | ||
| Range | 12V | |||
| Power supply - Input | AC: 110~240V, DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| external | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Storage | -20° down to 70°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | 19-inch | ||
| Width | 482 mm | |||
| Deep | 300 mm | |||
| Height | 44 mm | |||
| Height units | 1 HE | |||
| Weight | 4800 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 2 Pce | |||
| Color | Black / silver | |||
| Material | Aluminum | |||
| Mounting option | Rackmount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux, Ubuntu 24.04 | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
