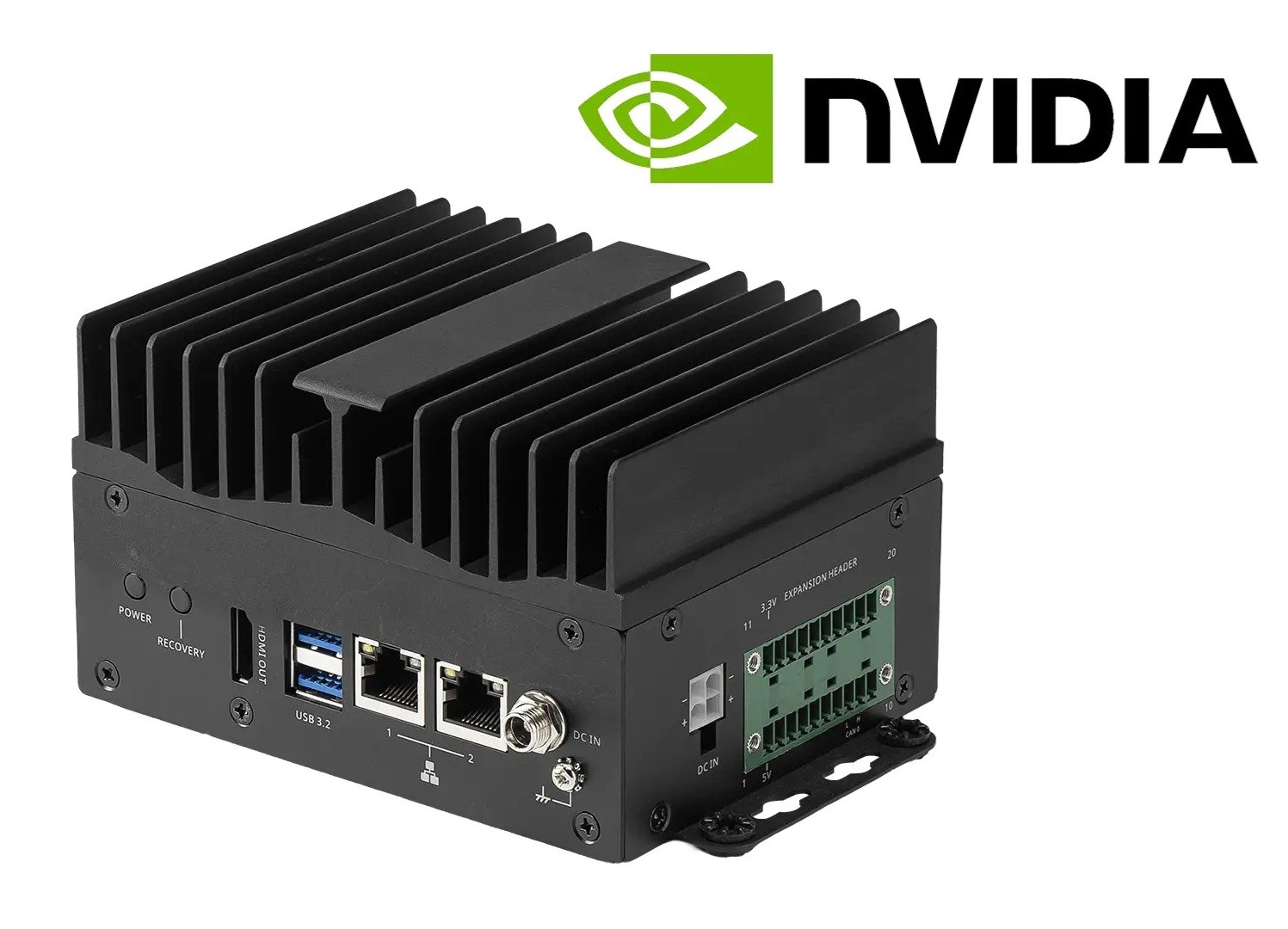

Edge AI System
// Edge AI System
// Nvidia Jetson ORIN NANO 8G
// Passive cooled
// 8 GB RAM
// 1 x Display
// 2 x USB (Front page)
// 1 x USB (Back side)
// 2 x G-LAN (Front page)
// 2 x M.2 Slot
// 12 to 24V
Sales only to business customers.
Delivery time: upon request
Basic Module: MSI MS-C9ZA
| General information | ||||
| SKU / Item Number | MS-C9ZA | |||
| Product Basic Data | ||||
| Manufacturer | MSI | |||
| Product ID | 9S6-C9ZA-001 | |||
| System | ||||
| Processor | Series | ARM Cortex-A78AE | ||
| Number | Nvidia Jetson ORIN NANO 8G | |||
| CPU cores | 6 Pce | |||
| Max Turbo Frequency | 1,5 GHz | |||
| Memory | Memory Type | DDR5 | ||
| Frequency | 3200 MHz | |||
| Internal memory | 8 GB | |||
| Graphics | ||||
| Processor | Nvidia Ampere | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), UART | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||

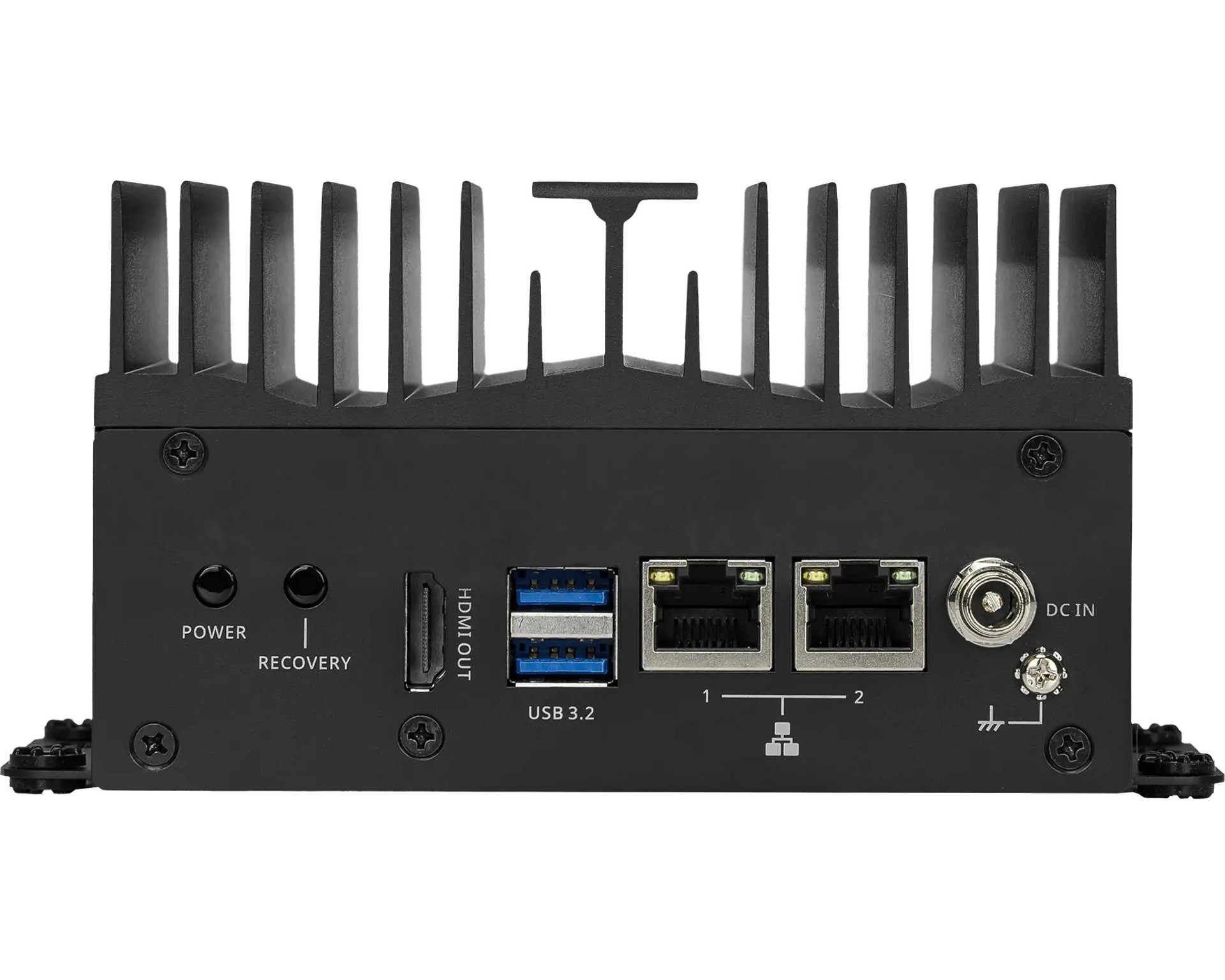

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||

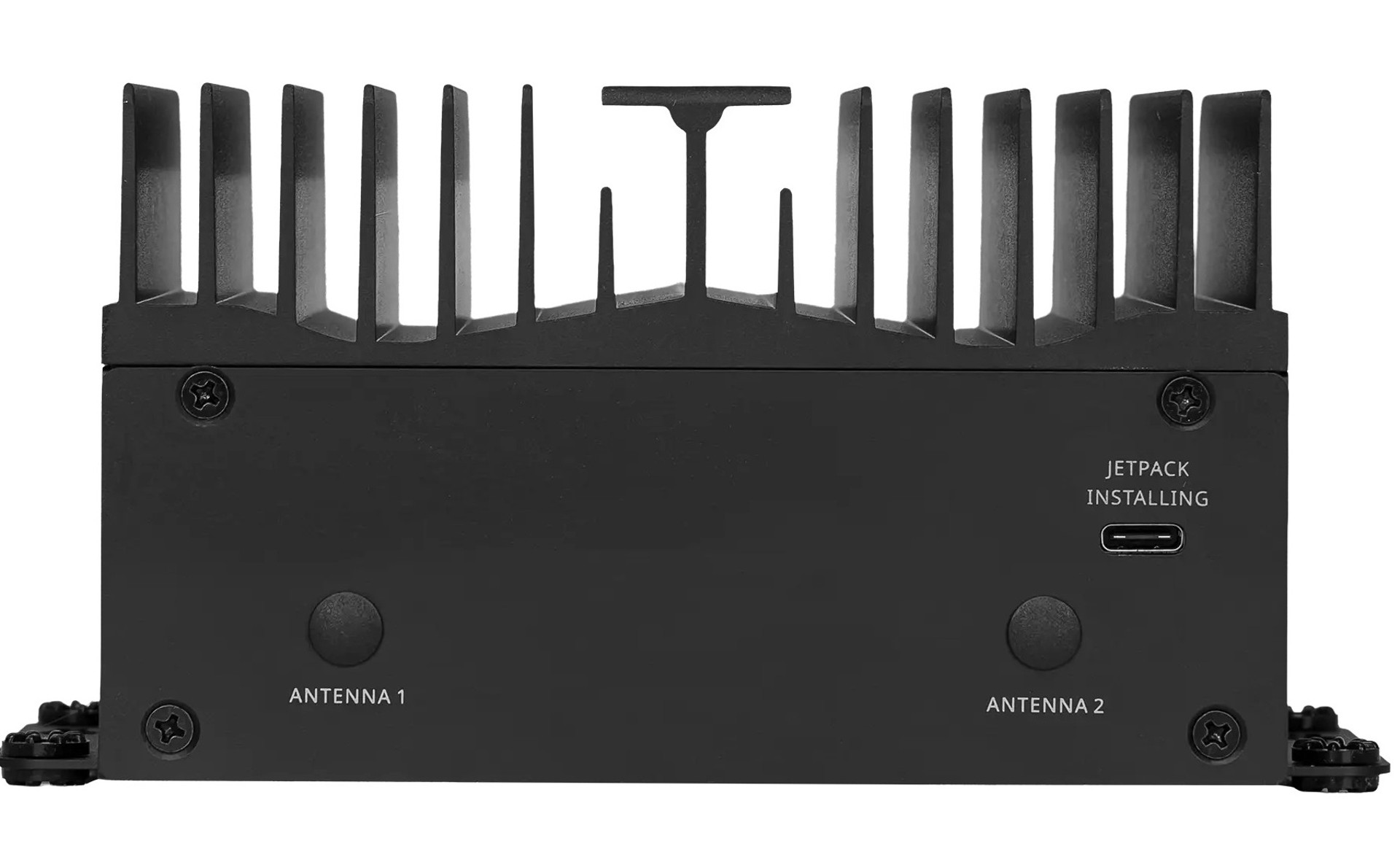

| Externe I/O (Rear Panel) | ||||
| USB | USB On-The-Go (USB OTG) | 1 Pce | ||

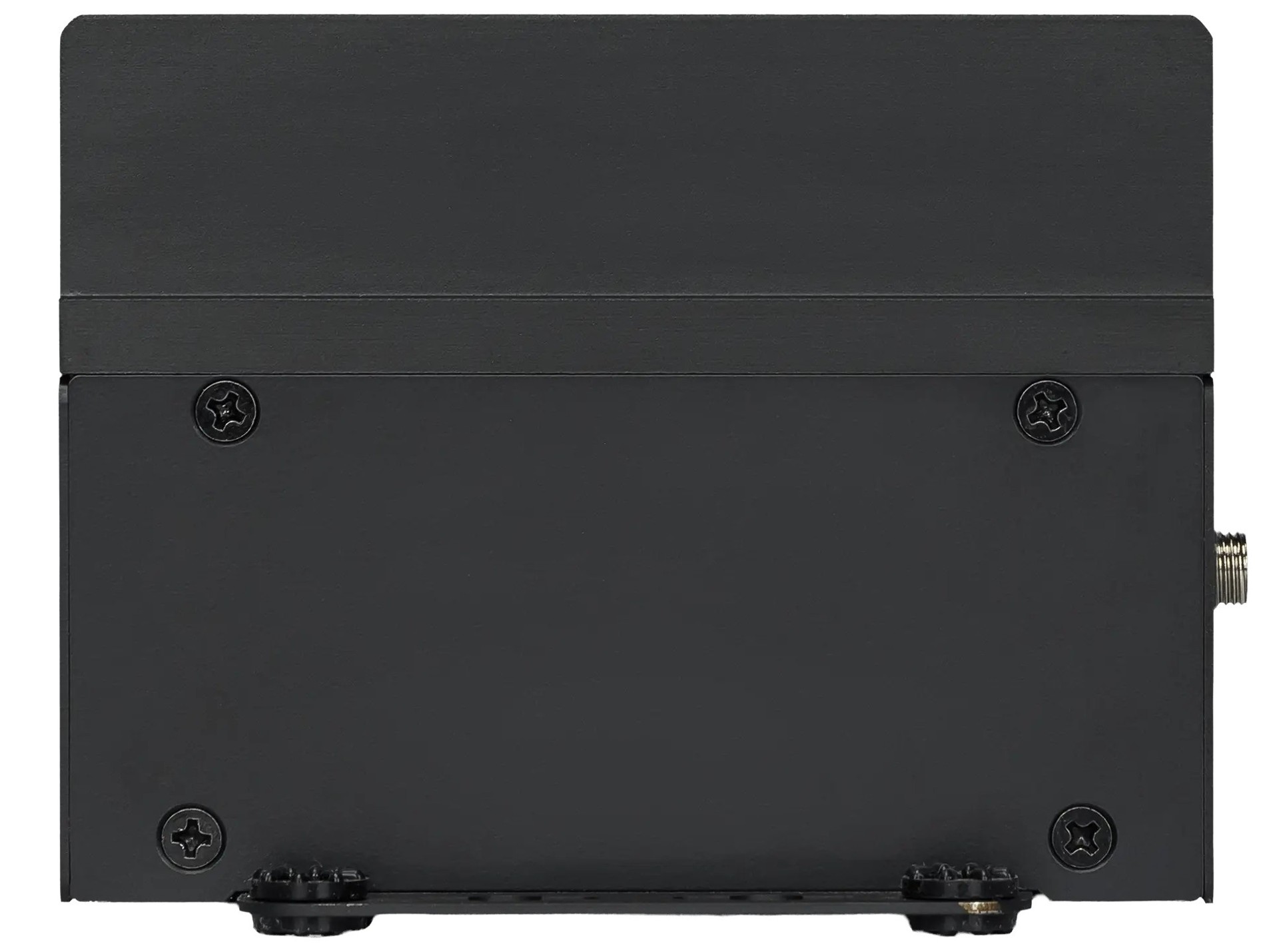

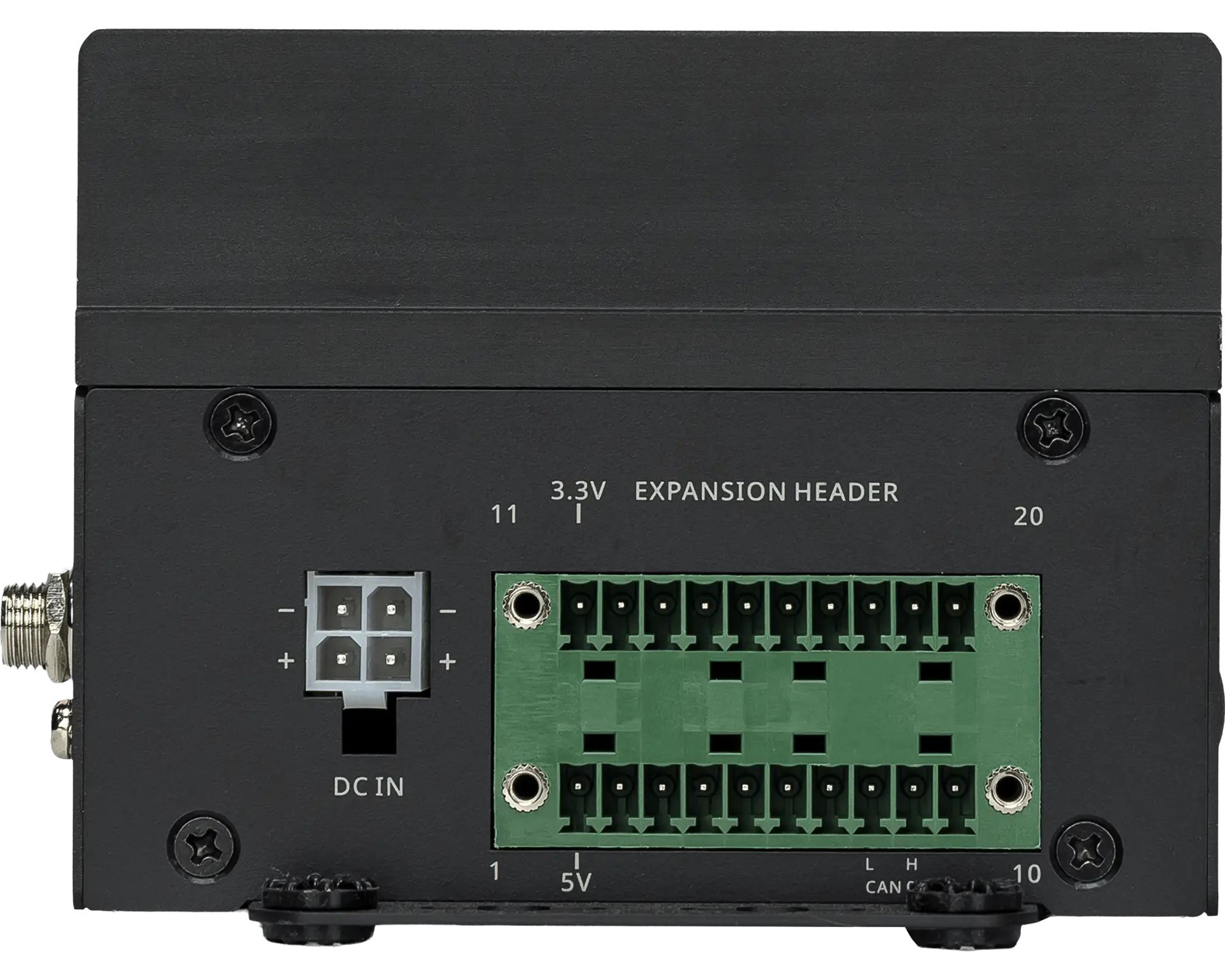

| External I/O (sidewise) | ||||
| Digital I/O | Quantity | 2 Pce | ||
| Bits | 4-bit | |||
| Connector | 20-pin terminal connector | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 4-pin connector (horizontal) | |||
| DC | Wide Range | No | ||
| Range | 19V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12~24V,19V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -25° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Edge AI System | ||
| Width | 126 mm | |||
| Deep | 96 mm | |||
| Height | 74 mm | |||
| Weight | 1000 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Linux | Distribution | Linux | ||
| Supported OS | Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | VCCI | |||
