Edge AI System
// Edge AI System
// Intel Core i5-12500TE
// 1,9 GHz
// Active (fan cooling) cooled
// 16 GB RAM
// 2 x Display
// 6 x Serial
// 8 x USB (Front page)
// 2 x G-LAN (Front page)
// 2 x PCIe x8
// 2 x M.2 Slot
// 12 to 28V
Sales only to business customers.
Delivery time: upon request

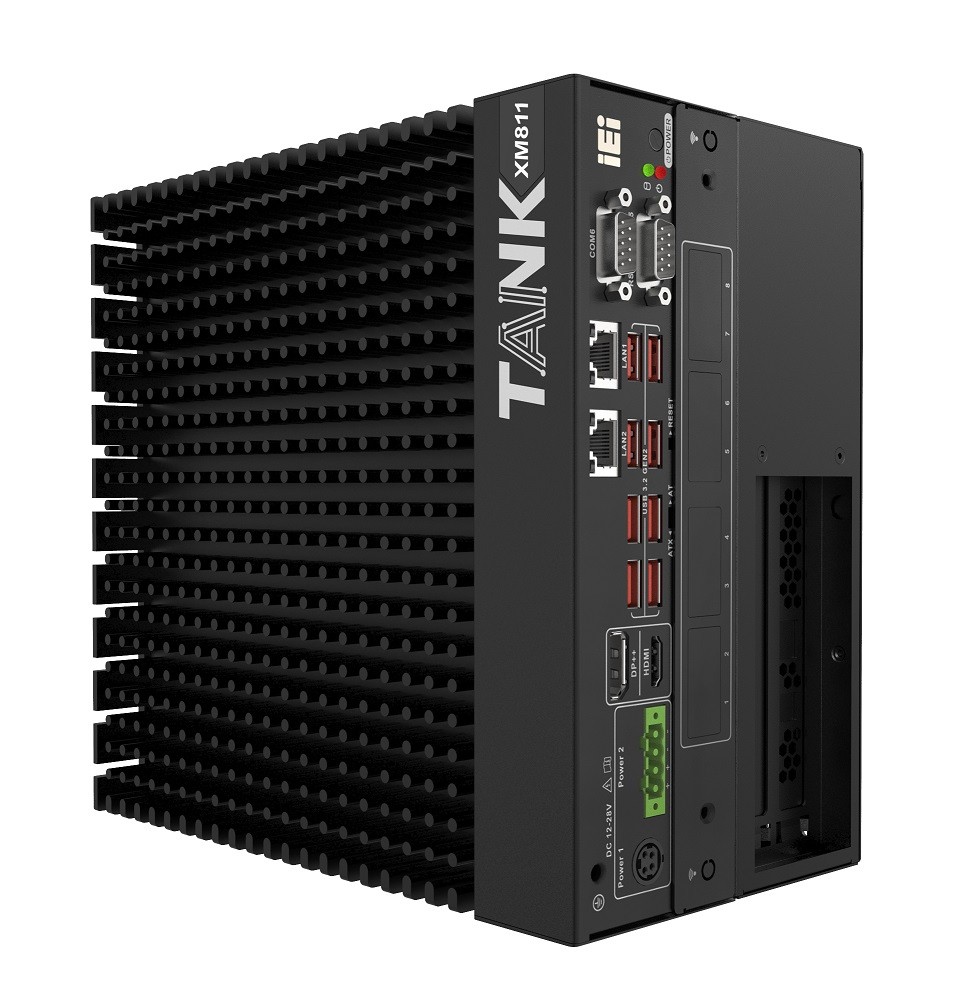

Basic Module: IEI TANK-XM811 AIoT Dev. Kit
| General information | ||||
| SKU / Item Number | TANK-XM811 AIoT Dev. Kit | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| Product ID | TANK-XM811AI-i5AD/2A-R10 | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Core i5-12500TE | |||
| CPU cores | 6 Pce | |||
| Threads | 12 Pce | |||
| Socket | LGA 1700 (H6) | |||
| Base frequency | 1,9 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz | |||
| Thermal Design Power (TDP) | 35 W | |||
| Chipset | Intel R680E | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered DIMM | |||
| Frequency | 3200 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Internal memory | 16 GB | |||
| Storage | Solid State Drive (SSD) | 256 GB | ||
| Power supply - Input | Solid State Drive (SSD) 256 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics 770 | |||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4 | |||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x8 | x8 signal | 2 Pce | ||
| PCIe Interfaces | 2x PCIe x8 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | A | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | A, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP++ | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 2) | 8 Pce | ||
| Externe I/O (Rear Panel) | ||||
| Serial | RS-232 | DB-9 | 4 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 12-bit | |||
| Connector | DB-15 | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 28V | |||
| Connector | 4-pin terminal plug | |||
| DC | Wide Range | Yes | ||
| Range | 12 to 28V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Power supply - Input | DC: 12~28V, 12~28V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | Edge AI System | ||
| Width | 137,9 mm | |||
| Deep | 255,4 mm | |||
| Height | 230,6 mm | |||
| Vibration | Reference Standard | MIL-STD-810G Method 514.6 | ||
| Shock | with SSD | 5G | ||
| Weight | 4600 g | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 2 Pce | ||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
